MSI MAG X670E Tomahawk: A High-Performance, Future-Ready AM5 Motherboard with Robust Power Delivery and Advanced Cooling

Introduction

The MSI MAG X670E Tomahawk WiFi is a powerhouse ATX motherboard tailored for users seeking high performance, durability, and cutting-edge compatibility with AMD’s Ryzen 7000, 8000, and even future 9000 series processors. Built on the advanced X670E chipset and leveraging the AM5 socket, it combines a strong VRM design, support for PCIe 5.0.

DDR5 memory and next-gen storage solutions, all while prioritizing thermal efficiency and user-friendly features. Whether you’re a PC enthusiast, gamer, or content creator, this board promises the flexibility, speed, and stability required for demanding computing tasks and future-ready builds.

High-definition audio is powered by Realtek ALC1200 with Audio Boost technology. With an 8-layer, 2oz copper PCB and steel-reinforced PCIe slots, the MAG X670E Tomahawk WiFi stands out as a durable, versatile choice for gamers, content creators, and PC enthusiasts seeking premium performance and reliability.

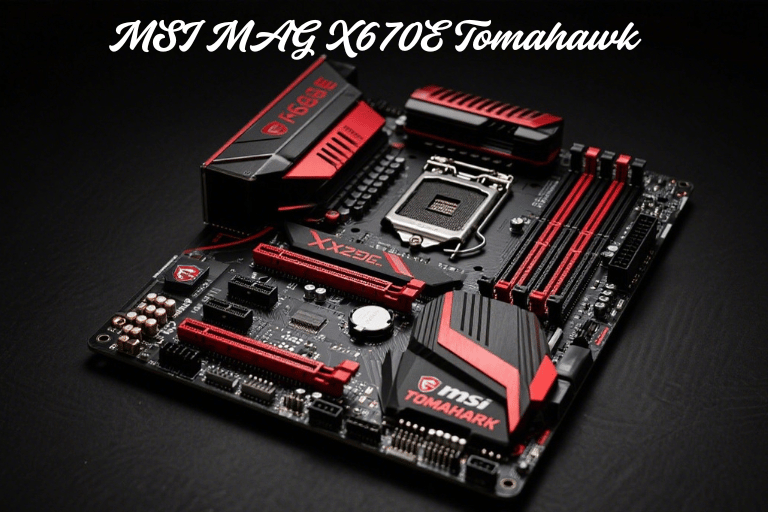

MSI MAG X670E Tomahawk

The MSI MAG X670E Tomahawk WiFi is a high-performance ATX motherboard designed for AMD’s latest Ryzen 7000, 8000, and 9000 series processors using the AM5 socket. Built on the powerful X670E chipset, it features a robust 14+2+1 Duet Rail Power System with dual 8-pin CPU connectors and 80A Smart Power Stages, ensuring exceptional stability for overclocking and demanding workloads.

This motherboard is tailored for future-proof builds, offering PCIe 5.0 x16 support for next-gen GPUs and a Gen5 M.2 slot for blazing-fast NVMe SSDs, along with three PCIe 4.0 M.2 slots and four SATA 6Gb/s connectors. It supports DDR5 memory up to 192GB (or 256GB in some configurations), with overclocking speeds exceeding 7800 MHz thanks to AMD EXPO profiles.

Thermal performance is enhanced with extended heatsinks, M.2 Shield Frozr, and ample fan headers, including a dedicated pump connector. DIY-friendly features like EZ M.2 clip and BIOS Flashback add to its usability. Connectivity is top-tier with USB 3.2 Gen2x2 Type-C, HDMI 2.1, DisplayPort 1.4, 2.5G LAN, and built-in Wi-Fi 6E with Bluetooth 5.3.

Design and VRM Power Delivery

The motherboard features a 14+2+1 Duet Rail Power System (14 for Vcore, 2 for SoC, and 1 for miscellaneous functions), utilizing 75A SPS (Smart Power Stage) MOSFETs. This ensures stable voltage regulation even under demanding conditions like Precision Boost Overdrive (PBO), undervolting, or memory overclocking.

• The extended VRM heatsinks and 7W/mK thermal pads help maintain low temperatures during heavy workloads.
• Dual 8-pin EPS connectors ensure stable power delivery for CPUs like the Ryzen 9 7950X or 7800X3D.
• The PCB is an 8-layer server-grade board, which provides improved signal integrity and better EMI protection.

This robust power infrastructure ensures the motherboard handles high core-count processors and extended gaming or productivity sessions without throttling.

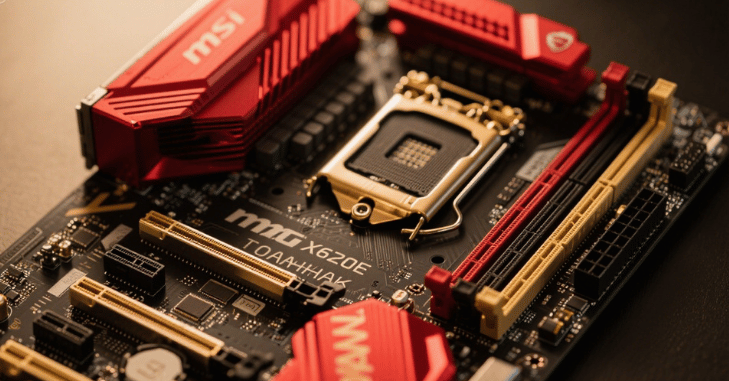

CPU & Memory Compatibility

At the heart of the MSI MAG X670E TOMAHAWK WIFI lies the AM5 socket (LGA 1718), which is designed to support AMD’s latest generation of processors. This motherboard is fully compatible with AMD Ryzen 7000 and 8000 Series CPUs built on the powerful Zen 4 architecture, delivering exceptional performance for gaming, content creation, and multitasking.

Memory Features

• Memory Support: 4× DDR5 DIMM slots
• Capacity: Up to 192 GB total memory
• Speed: Supports speeds up to 7800+ MHz (OC) through AMD EXPO and Intel XMP profiles.
• Channel Architecture: Dual-channel
• Stability: Uses SMT soldering and Daisy Chain layout to improve memory signal quality and overclocking potential.

Expansion & Storage Capabilities

PCIe Slots

• 1× PCIe 5.0 x16 slot (with Steel Armor)
• 1× PCIe 4.0 x16 slot (x4 mode)
• 1× PCIe 3.0 x1 slot

This layout supports next-generation GPUs and allows flexibility for additional expansion cards such as capture cards or sound cards.

M.2 and SATA Storage

• M.2_1: PCIe 5.0 x4 (supports 22110/2280 SSDs)
• M.2_2, M.2_3, M.2_4: PCIe 4.0 x4 (supports 2280/2260 SSDs)
• Thermal Control: All M.2 slots are covered by M.2 Shield Frozr heatsinks to prevent thermal throttling.
• 4× SATA III (6Gb/s) ports with support for RAID 0, 1, and 10.

This combination allows users to deploy ultra-fast NVMe SSDs and additional SATA drives, making it ideal for game libraries, video editing projects, or RAID storage solutions.

Networking & Connectivity

The MSI MAG X670E TOMAHAWK WIFI is equipped with cutting-edge connectivity features that ensure seamless online performance and flexible device compatibility. For wireless networking, it includes integrated Wi-Fi 6E (802.11ax), which supports tri-band frequencies (2.4GHz, 5GHz, and 6GHz).

This advanced wireless solution delivers low-latency, high-speed performance, making it ideal for demanding tasks such as competitive gaming, 4K streaming, and remote work with minimal lag or buffering. On the wired side, the motherboard features a 2.5G LAN port powered by the Realtek RTL8125BG chipset, offering a stable and significantly faster Ethernet connection than standard Gigabit LAN, perfect for users who prioritize reliable data transfer and network consistency.

Rear I/O Ports & Internal Headers

Rear I/O Ports

• 1× HDMI 2.1 (up to 4K 60Hz with supported APU)
• 1× DisplayPort 1.4
• 1× USB 3.2 Gen 2×2 Type‑C (20Gbps)
• 2× USB 3.2 Gen 2 Type‑A (10Gbps)
• 4× USB 3.2 Gen 1 Type‑A (5Gbps)
• 2× USB 2.0 Type‑A
• 1× BIOS Flashback button
• 1× Clear CMOS button
• Audio Jacks: 5× gold-plated + Optical S/PDIF (7.1 channel HD audio)

Internal Headers

• 1× Front USB 3.2 Gen 2 Type-C header
• 2× Front USB 3.2 Gen 1 headers
• 2× USB 2.0 internal headers
• 8× PWM/DC fan headers (including AIO pump)
• 2× 4-pin RGB headers & 2× 3-pin ARGB Gen2 headers

Audio

The audio system on the MSI MAG X670E TOMAHAWK WIFI is designed to deliver high-fidelity sound, making it well-suited for gamers, streamers, and content creators. At its core is the Realtek ALC1200 codec, which supports 7.1-channel High Definition Audio, providing immersive and richly detailed sound output.

To enhance clarity and reduce distortion, MSI integrates premium Japanese Chemicon audio capacitors, known for their stability and low noise performance. The motherboard also features a dedicated isolation layer that physically separates the audio circuitry from the rest of the board’s components.

This design helps eliminate electromagnetic interference, ensuring cleaner signal transmission and a more precise listening experience. Together, these elements create a reliable and distortion-free audio environment, whether you’re gaming, editing videos, or enjoying high-quality music.

Cooling Features

• Frozr AI Cooling: MSI’s smart fan control technology dynamically adjusts fan speed based on CPU and GPU temperatures.
• Pump fan support enables better integration with custom water cooling systems.
• Extended heatsink designs over VRMs and M.2 slots help improve thermal dissipation during high load or overclocked states.

The total of 8 PWM headers allows complete cooling system customization and quiet operation.

BIOS & Overclocking Tools

The MSI MAG X670E TOMAHAWK WIFI comes equipped with the intuitive Click BIOS 5 UEFI interface, offering both Advanced and EZ modes to cater to a wide range of users, from beginners to seasoned enthusiasts. This user-friendly BIOS setup simplifies system monitoring, hardware configuration, and overclocking adjustments.

One of the standout features is the Memory Try It! function, which allows users to test a variety of memory presets to optimize stability and performance without needing deep manual tuning. For those looking to push their CPUs further, the board supports AMD’s PBO (Precision Boost Overdrive) and Curve Optimizer, enabling automatic overclocking and fine-tuned undervolting with ease.

Additionally, the inclusion of the BIOS Flashback+ button is a significant convenience—it allows users to update the BIOS without needing a CPU, GPU, or RAM installed, which is particularly useful when setting up a new AM5 system or preparing for a future CPU upgrade.

Performance & Real-World Usage

• Cold boot times are quick, generally around 20 seconds with DDR5 memory.
• Handles 6000 MT/s CL30 memory kits easily without the need for manual tuning.
• Works stably with high-performance CPUs like Ryzen 7 7800X3D and Ryzen 9 7950X, even with power-hungry workloads like 3D rendering or streaming while gaming.
• Users report zero memory training loops, stable boot behavior, and solid power delivery under overclocked conditions.
• Delivers solid PCIe 5.0 SSD performance with proper thermal control, ensuring consistent read/write speeds.

Read More: – The Ultimate Revvl 7 Pro 5G Review: In-Depth Look at Its Specs, Camera, Battery

Compared to Other Boards

Conclusion

The MSI MAG X670E Tomahawk WiFi stands out as a top-tier choice in the AM5 motherboard landscape, offering a well-rounded balance of power, performance, and expandability. From its robust 14+2+1 VRM setup and PCIe 5.0 support to its advanced cooling and premium connectivity options, it’s clear this board is engineered for longevity and high-end use.

While it may not have the flashy aesthetics of premium flagships like the GODLIKE series, it delivers up to 95% of the performance at a significantly lower cost, making it a smart investment for users who prioritize substance over style. For builders looking to harness the full potential of AMD’s Ryzen platforms, the X670E Tomahawk WiFi is a reliable and forward-compatible foundation.
